VACCUM WET PRESS KERB STONES

Full Batter Kerb
Full Batter Kerb
Full Batter Kerb

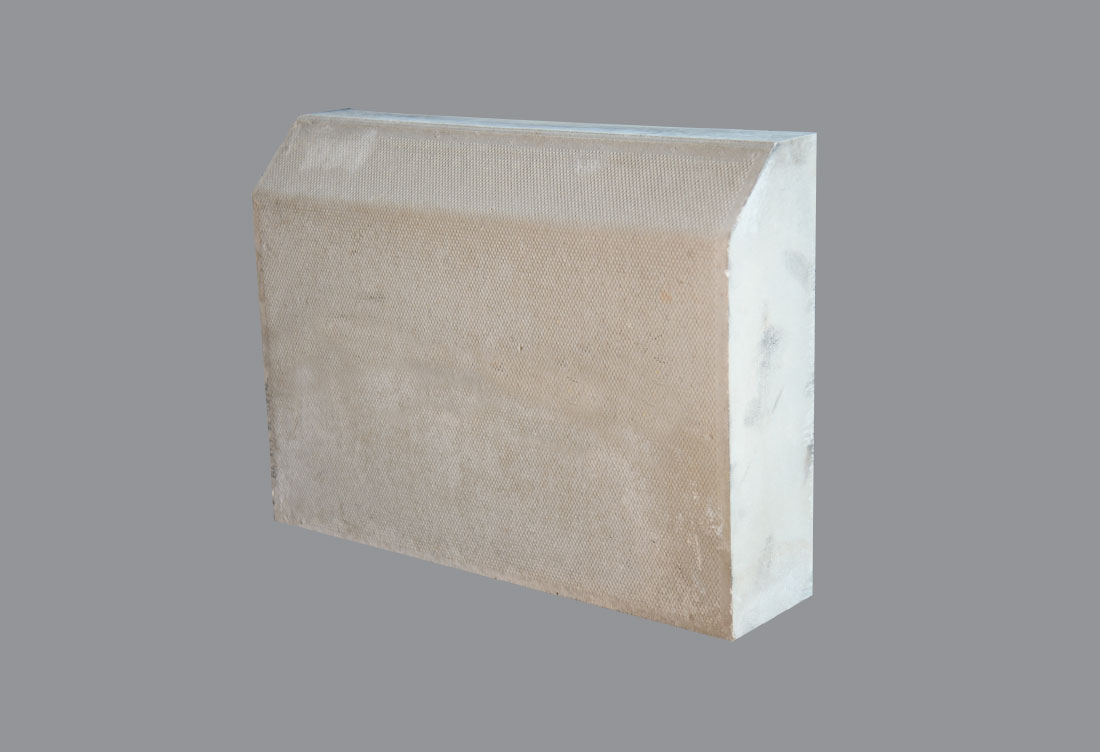

FULL BATTER KERB

Product Overview

Full Batter Kerb Stones are engineered to permit smooth vehicular access, commonly used in roadway medians, entry/exit zones, and areas without pedestrian footpaths. The chamfered/splayed design enhances wheel-over access, making them suitable for vehicular-priority environments.

Note: These kerbs are not recommended where pedestrian walkways or footpaths are present due to safety considerations.

Key Features
  • Application: Ideal for driveways, vehicular access zones, road medians, and industrial edges
  • Design: Splayed face for smooth vehicle mounting
  • Usage: Enables access over kerb; restricts in footpath-integrated areas
  • Safety: 20mm radius edges for reduced impact and edge chipping
  • Durability: Designed for heavy-duty vehicular zones
Material Specification
  • Material: Precast Concrete
  • Finish: Smooth
  • Edge Radius: R20 mm on splayed face
Available Dimensions (mm):
Model L H B T Kerb Type
500x325x100/150 500 325 100 70 Full Batter (50mm Splay)
500x325x125/165 500 325 125 70 Full Batter (50mm Splay)
600x450x100/150 600 450 100 75 Full Batter (75mm Splay)
600x450x125/165 600 450 125 75 Full Batter (75mm Splay)
Installation Notes
  • Should be laid with proper base and haunching concrete
  • Suitable for locations requiring clear vehicular transition over kerb edges
Half Batter Kerb
Half Batter Kerb
Half Batter Kerb

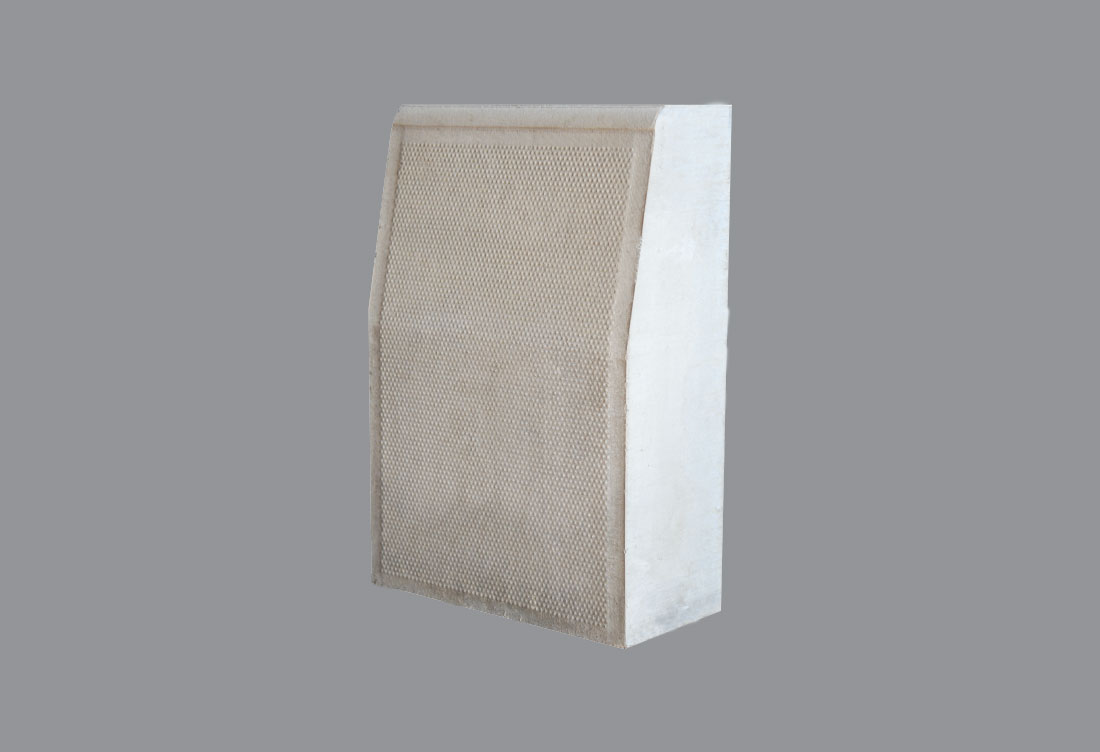

HALF BATTER KERB

Product Description

Half Batter Kerb Stones are engineered to guide vehicular traffic back onto the carriageway and provide a physical barrier to safeguard pedestrians. This profile is commonly used across urban road networks due to its balance of durability and safety. Ideal for both highways and urban streetscapes, it forms the standard choice for kerbing applications.

Key Features
  • Designed to deflect vehicle movement toward the road
  • Provides clear edge restraint for pavements and walkways
  • Suitable for both machine and manual laying
  • Manufactured for heavy-duty applications and consistent alignment
Available Dimensions (mm)
Model (L×H×T/B) Overall Height (H) Upstand (U) Base Width (W) Top Width (T) Splay Radius
500 × 325 × 100 / 150 325 125 100 60 R20
500 × 325 × 125 / 165 325 125 125 60 R20
600 × 450 × 100 / 150 450 250 100 60 R20
600 × 450 × 125 / 165 450 250 125 60 R20
Applications
  • Urban roads and highways
  • Footpaths and medians
  • Parking zones and service roads
Bull Nose Kerb
Bull Nose Kerb
Bull Nose Kerb

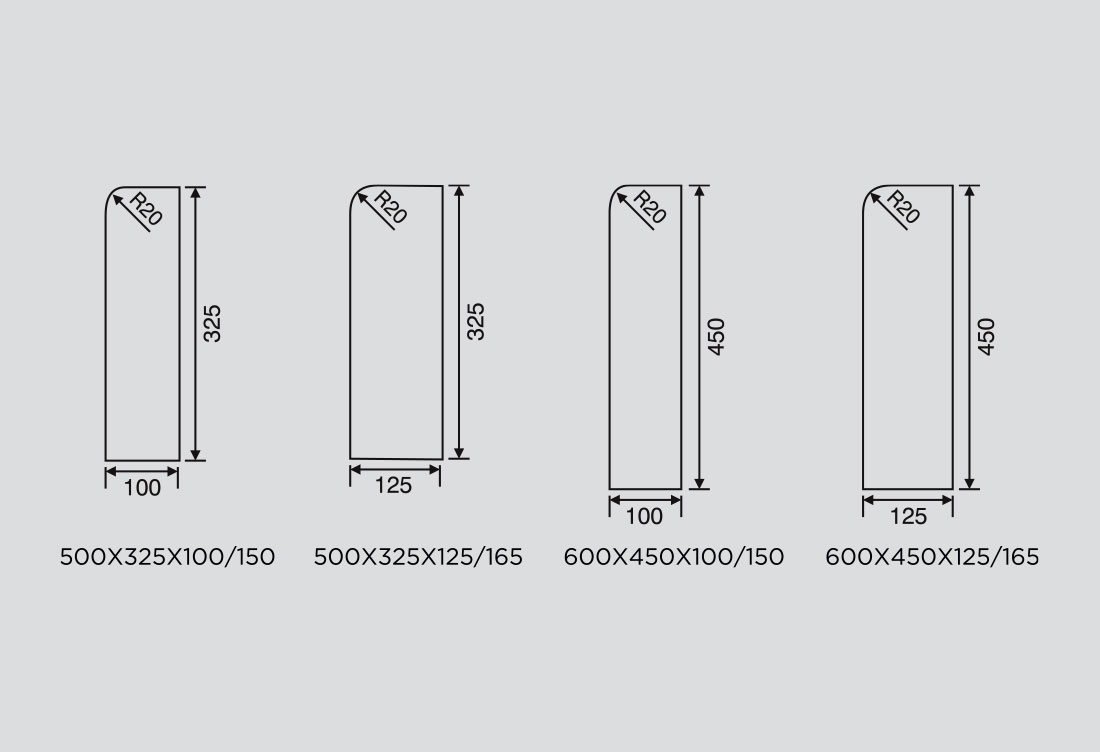

BULL NOSE KERB

Product Description

Bull Nose Kerbs are specifically designed for smooth vehicular access between carriageways and private driveways or entry points across pedestrian walkways. The rounded top edge (R20 radius) ensures safe transitions and minimizes impact on tyres and pedestrian traffic.

Key Features
  • Ideal for vehicle crossover points
  • Smooth rounded nose for reduced tyre wear
  • Provides a clean and functional transition from road to driveway
  • Suitable for residential and commercial access applications
Technical Specifications (mm):
Length Height Width Depth Variant Radius (Top Edge)
500 325 100 100 / 150 R20
500 325 125 125 / 165 R20
600 450 100 100 / 150 R20
600 450 125 125 / 165 R20
Applications
  • Driveway entries
  • Pedestrian footpath crossings
  • Residential and urban roadways
Flush Kerb
Flush Kerb
Flush Kerb

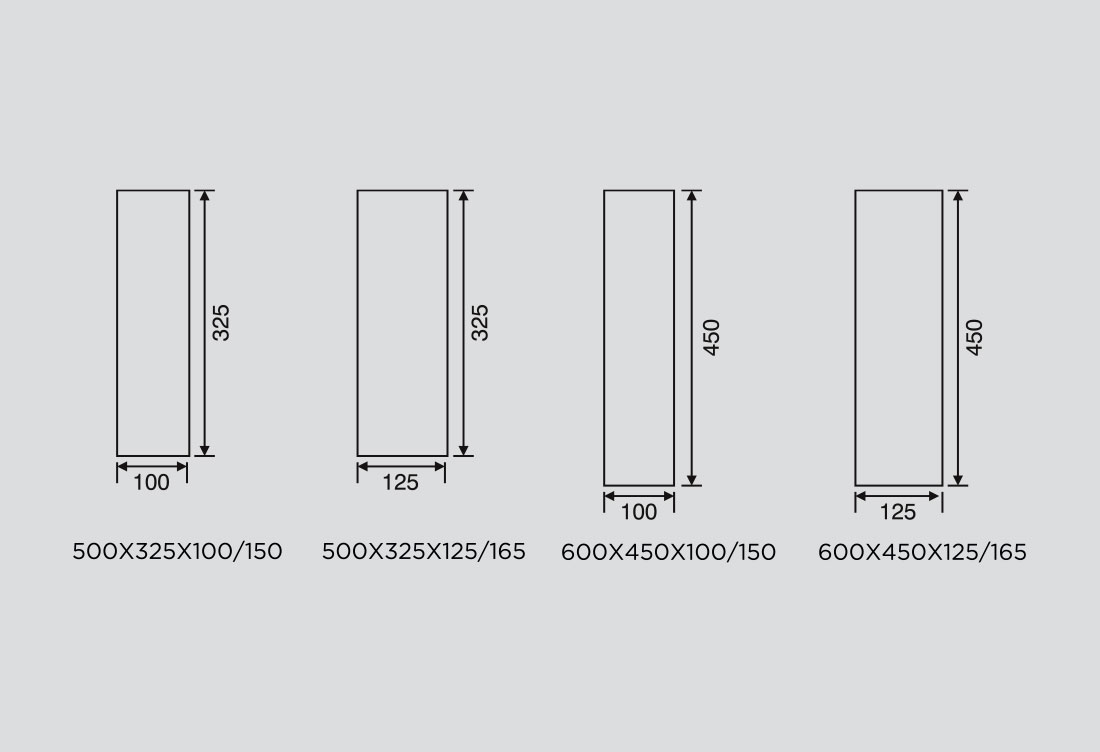

FLUSH KERB STONE

Product Description

Flush Kerb Stones are designed to provide a level interface between carriageways and adjoining surfaces, commonly used where a minimal height difference is needed. Also known as Square Kerbs, they are ideal for flat or flush applications such as footpaths, driveways, and pedestrian crossings.

Key Features
  • Provides seamless transition from road to pavement
  • Suitable for areas requiring flat floor levels
  • Chamfered corner with R20 mm radius for safe edge detailing
  • Manufactured to support structural stability and durability in urban infrastructure
Available Dimensions (mm):
Sr. No. Length (mm) Height (mm) Width (mm) Optional Thickness (mm) Dimension Format
1 500 325 100 100 / 150 500 x 325 x 100 / 150
2 500 325 125 125 / 165 500 x 325 x 125 / 165
3 600 450 100 100 / 150 600 x 450 x 100 / 150
4 600 450 125 125 / 165 600 x 450 x 125 / 165
Applications
  • Footpath and pedestrian edge detailing
  • Driveway edges with minimal upstand
  • Vehicular access zones and public realm landscaping
