FLUSH KERB STONE
Product Description

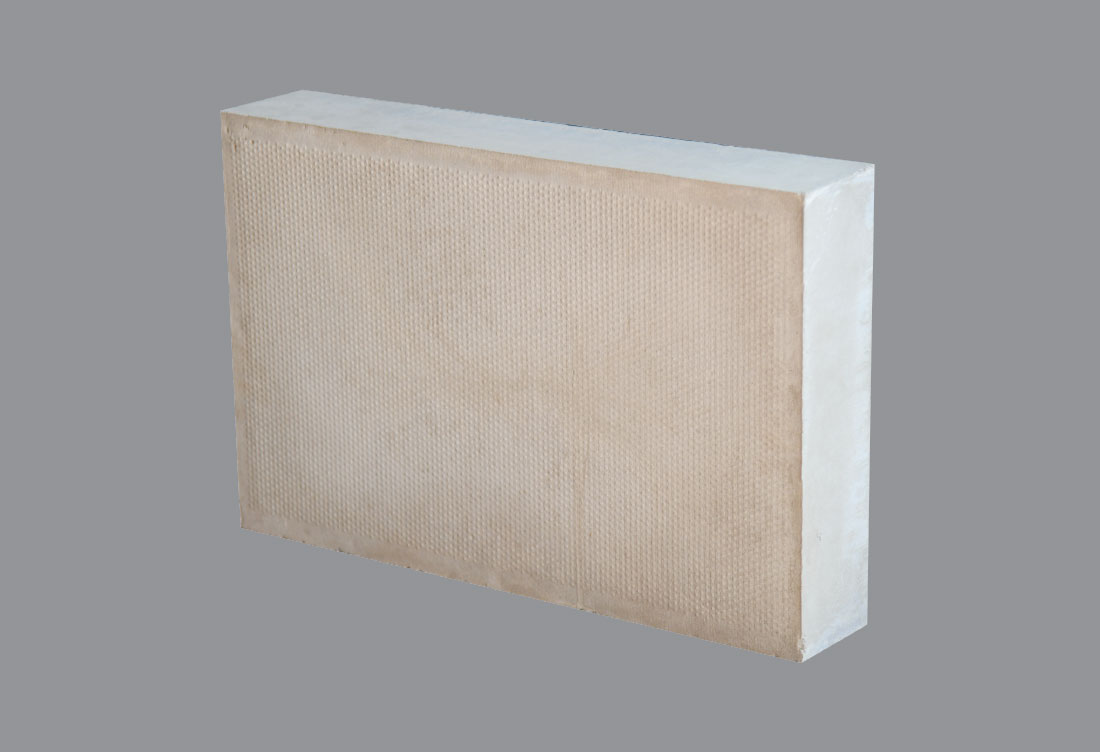

Flush Kerb Stones are designed to provide a level interface between carriageways and adjoining surfaces, commonly used where a minimal height difference is needed. Also known as Square Kerbs, they are ideal for flat or flush applications such as footpaths, driveways, and pedestrian crossings.
Key Features
- Provides seamless transition from road to pavement
- Suitable for areas requiring flat floor levels
- Chamfered corner with R20 mm radius for safe edge detailing
- Manufactured to support structural stability and durability in urban infrastructure

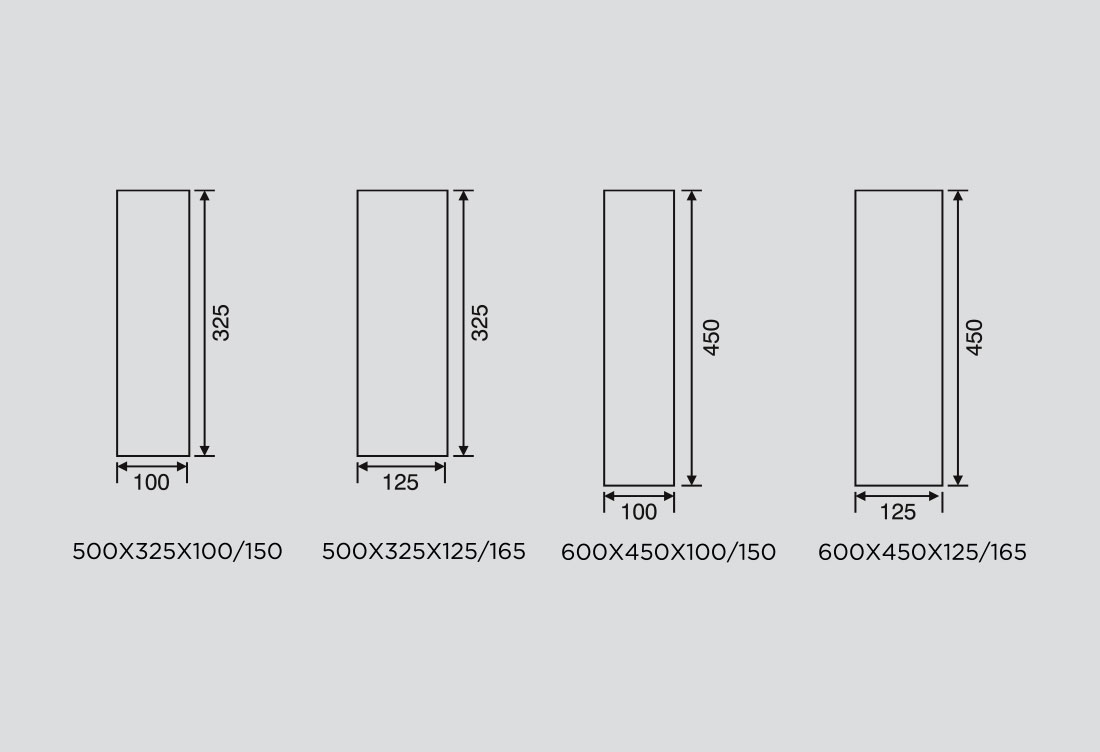

Available Dimensions (mm):
| Sr. No. | Length (mm) | Height (mm) | Width (mm) | Optional Thickness (mm) | Dimension Format |
|---|---|---|---|---|---|
| 1 | 500 | 325 | 100 | 100 / 150 | 500 x 325 x 100 / 150 |
| 2 | 500 | 325 | 125 | 125 / 165 | 500 x 325 x 125 / 165 |
| 3 | 600 | 450 | 100 | 100 / 150 | 600 x 450 x 100 / 150 |
| 4 | 600 | 450 | 125 | 125 / 165 | 600 x 450 x 125 / 165 |
Applications
- Footpath and pedestrian edge detailing
- Driveway edges with minimal upstand
- Vehicular access zones and public realm landscaping
