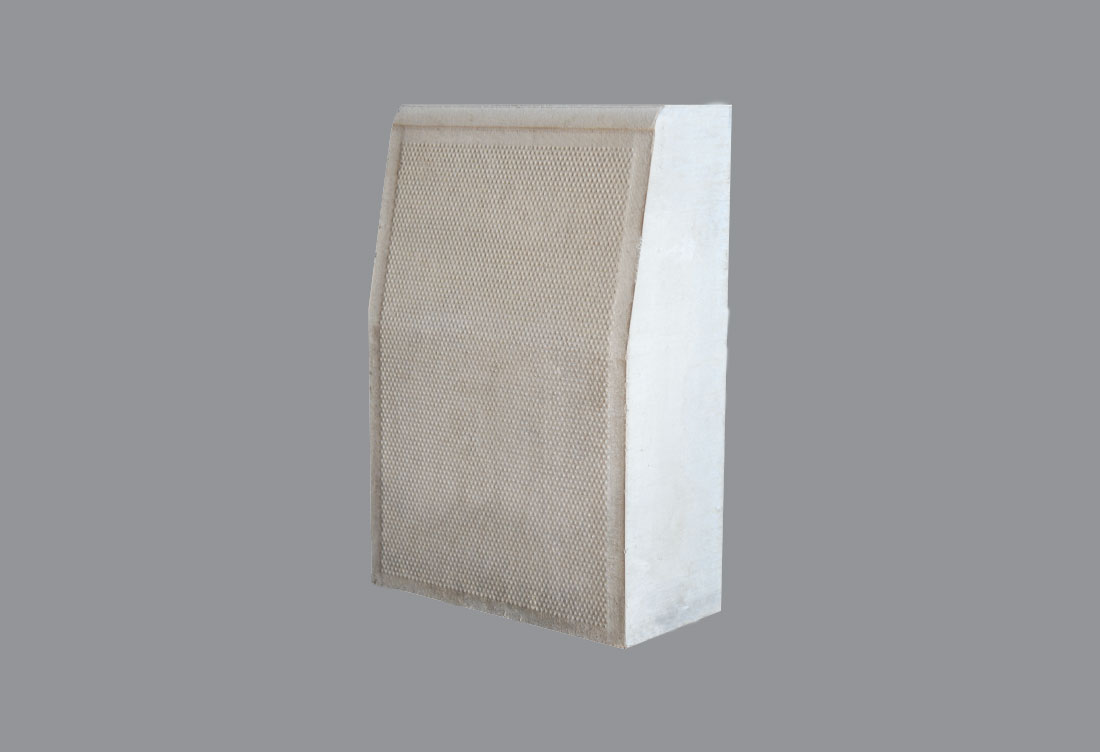

HALF BATTER KERB
Product Description
Half Batter Kerb Stones are engineered to guide vehicular traffic back onto the carriageway and provide a physical barrier to safeguard pedestrians. This profile is commonly used across urban road networks due to its balance of durability and safety. Ideal for both highways and urban streetscapes, it forms the standard choice for kerbing applications.
Key Features
- Designed to deflect vehicle movement toward the road
- Provides clear edge restraint for pavements and walkways
- Suitable for both machine and manual laying
- Manufactured for heavy-duty applications and consistent alignment

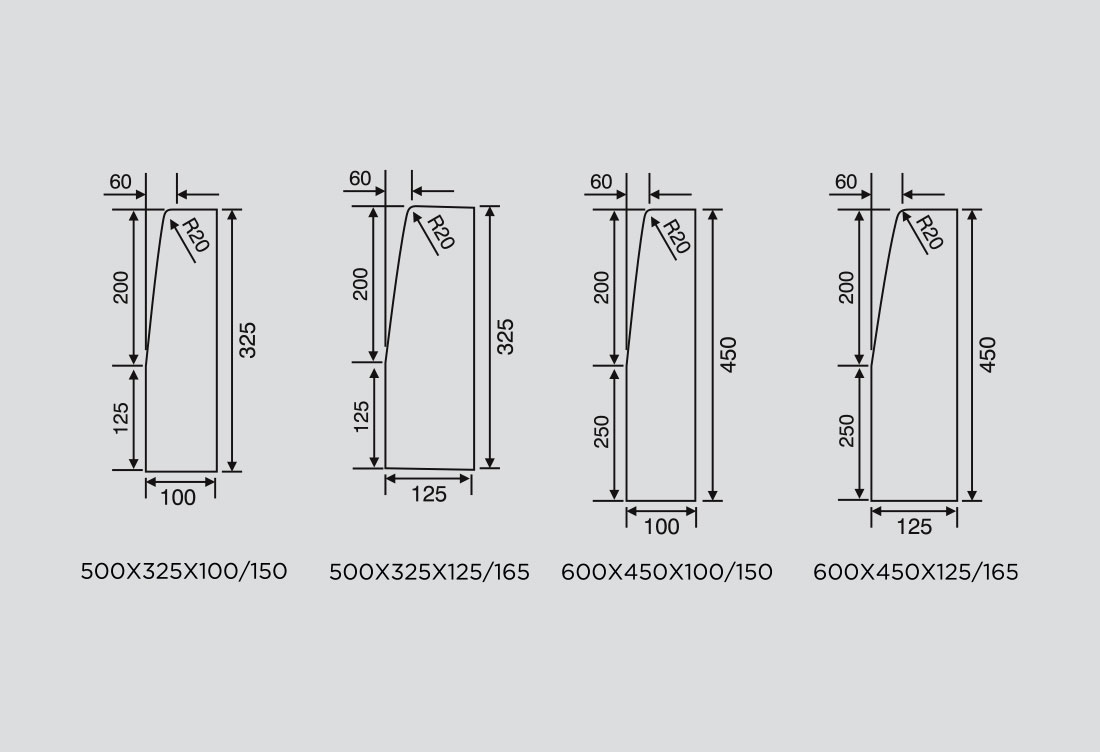

Available Dimensions (mm)
| Model (L×H×T/B) | Overall Height (H) | Upstand (U) | Base Width (W) | Top Width (T) | Splay Radius |
|---|---|---|---|---|---|
| 500 × 325 × 100 / 150 | 325 | 125 | 100 | 60 | R20 |
| 500 × 325 × 125 / 165 | 325 | 125 | 125 | 60 | R20 |
| 600 × 450 × 100 / 150 | 450 | 250 | 100 | 60 | R20 |
| 600 × 450 × 125 / 165 | 450 | 250 | 125 | 60 | R20 |
Applications
- Urban roads and highways
- Footpaths and medians
- Parking zones and service roads
