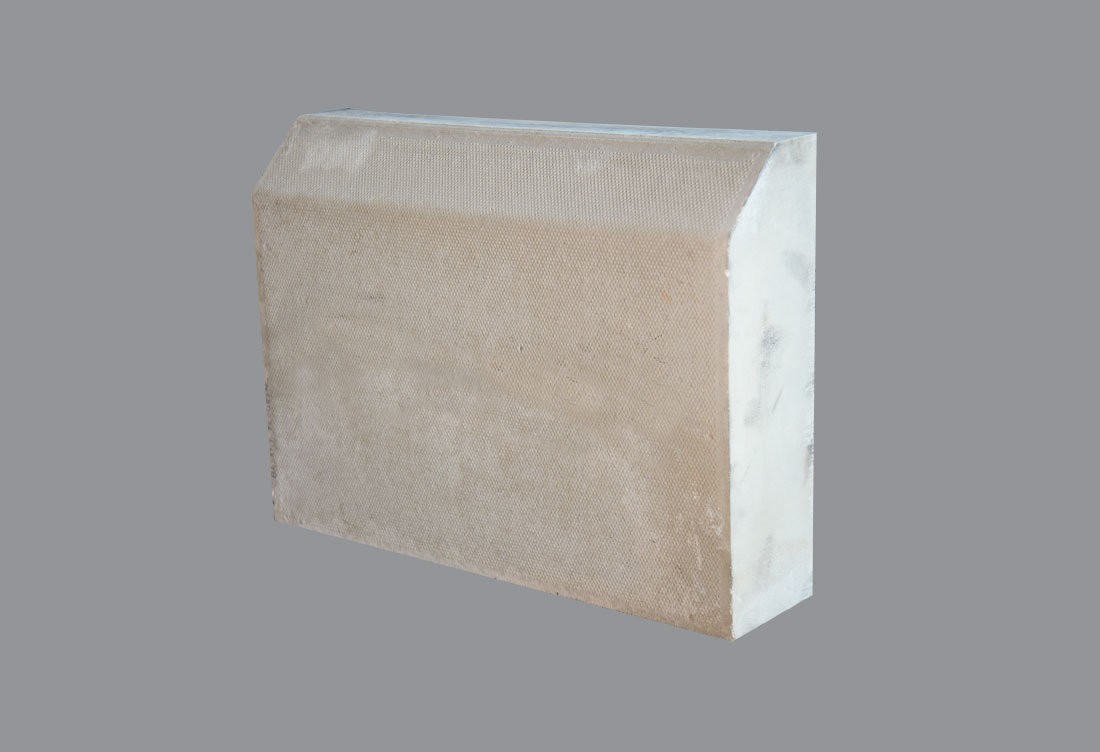

FULL BATTER KERB
Product Overview
Full Batter Kerb Stones are engineered to permit smooth vehicular access, commonly used in roadway medians, entry/exit zones, and areas without pedestrian footpaths. The chamfered/splayed design enhances wheel-over access, making them suitable for vehicular-priority environments.
Note: These kerbs are not recommended where pedestrian walkways or footpaths are present due to safety considerations.
Key Features
- Application: Ideal for driveways, vehicular access zones, road medians, and industrial edges
- Design: Splayed face for smooth vehicle mounting
- Usage: Enables access over kerb; restricts in footpath-integrated areas
- Safety: 20mm radius edges for reduced impact and edge chipping
- Durability: Designed for heavy-duty vehicular zones
Material Specification
- Material: Precast Concrete
- Finish: Smooth
- Edge Radius: R20 mm on splayed face

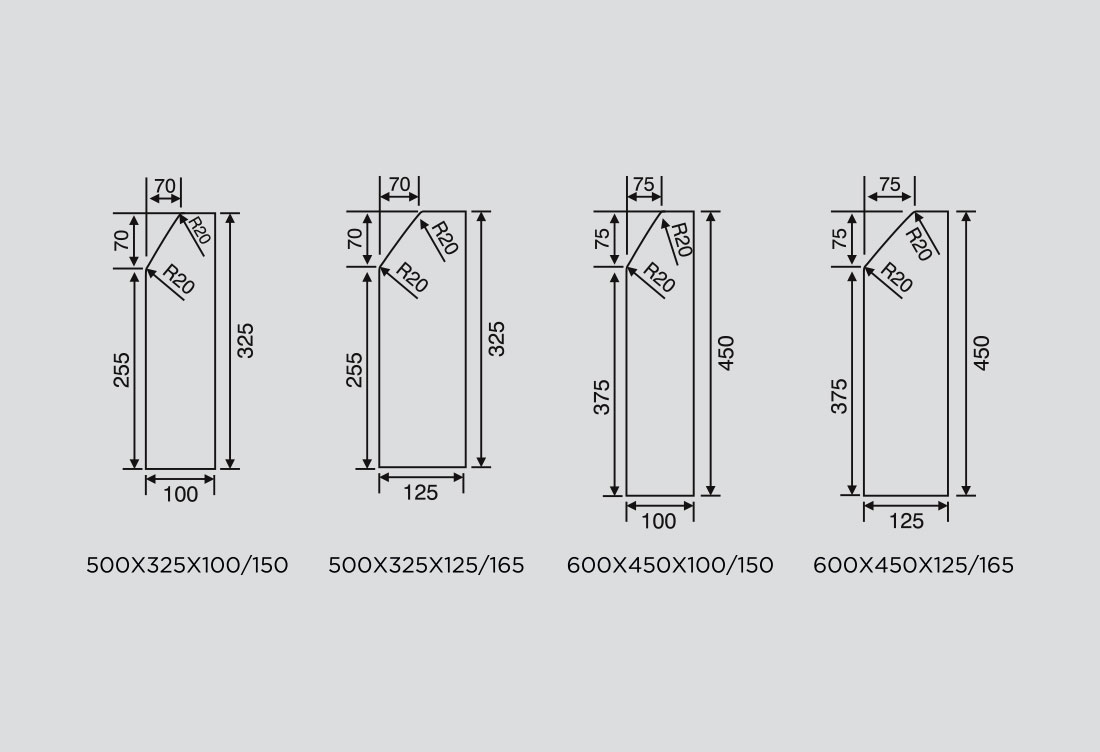

Available Dimensions (mm):
| Model | L | H | B | T | Kerb Type |
|---|---|---|---|---|---|
| 500x325x100/150 | 500 | 325 | 100 | 70 | Full Batter (50mm Splay) |
| 500x325x125/165 | 500 | 325 | 125 | 70 | Full Batter (50mm Splay) |
| 600x450x100/150 | 600 | 450 | 100 | 75 | Full Batter (75mm Splay) |
| 600x450x125/165 | 600 | 450 | 125 | 75 | Full Batter (75mm Splay) |
Installation Notes
- Should be laid with proper base and haunching concrete
- Suitable for locations requiring clear vehicular transition over kerb edges
